General Description

The F-31 is available in two different versions: the aft cabin model and the aft cockpit model. The aft cockpit model has an open and longer cockpit in place of the aft cabin, and the main cabin is also larger and features an interior configuration that easily converts from day to night requirements; a table and extra bunk slide completely out of the way when not in use. Accommodations for five. Interior features six-foot, two-inch standing headroom, a large double V-berth forward, an enclosed head, and a galley area with sink and a large molded countertop. Large storage compartments in each float augment the plentiful storage in the cabins. The cockpit seats six adults, though this is seldom necessary as the broad decks and nets give the crew many other comfortable places to spread out and relax. The forward hull shape effectively deflects spray away from the cockpit, and winches, halyards and sheets, and the controls for the daggerboard, rudder, and outboard motor can all be operated from the cockpit. A transom swim platform provides easy access on and off the boat. The fractional rotating rig is very efficient and easy to handle in all conditions The fully battened mainsail has slab or jiffy reefing on the aft-cockpit model. An asymmetrical spinnaker flown from the bowsprit enhances off-wind performance. A foil shapped daggerboard provides efficient windward performance; this, along with the kickup rudder, enables the F-31 to moor in very shallow water or even be beached.

Specifications and details

• Designer: Ian Farrier

• Builder: Corsair Marine

• Aft-Cockpit configuration

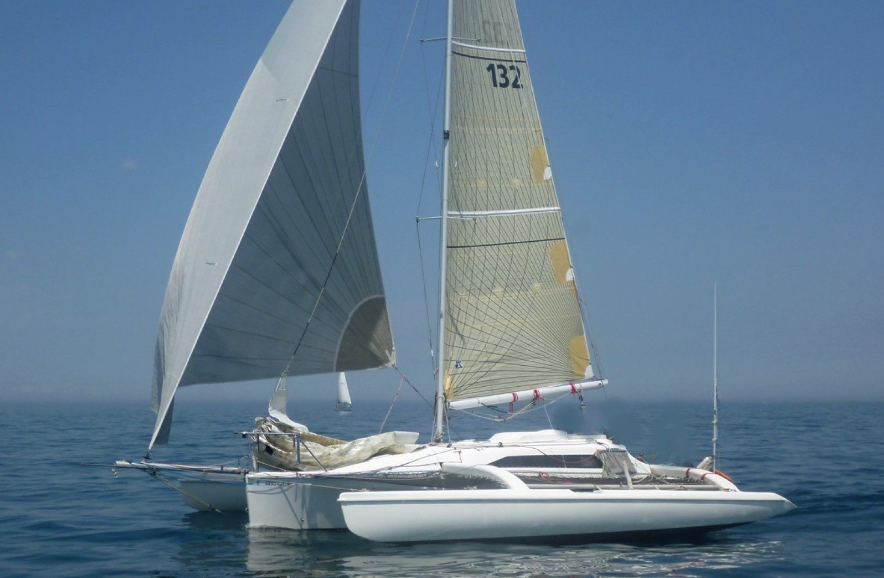

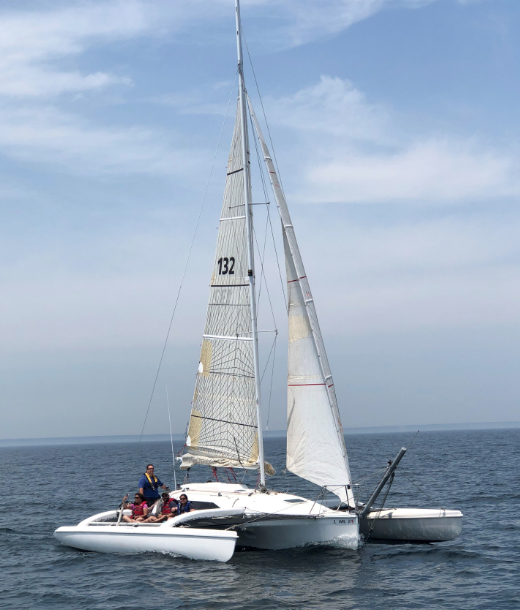

• Hull # 132, 1999 Corsair factory constructed in Chula Vista, CA, USA

• Hull identification number: CSR30132L899

• Aerofoil shaped rotating carbon fiber mast [Southern Spars / Omohondro]

• Height above deck 42’6”

• Height above water [bridge clearance] 48’

• Articulating 7 foot aluminum bowsprit with 4:1 bobstay vang system

• Spinnaker control package

• Screecher control package

• Performance package

• Refrigeration 12Volt

• AC shore power / inverter / charger

• Beam expanded floats: 22”5”

• Beam floats folded: 8’2”

• L.O.A. 30’10”

• L.W.L. 30’0”

• Draft [dagger board up]: 1’4”

• Draft [dagger board down]: 5’6”

• Height on trailer: 11’6”

• Displacement [min. sailing weight, 3850 lbs.]

• Weight with trailer (trailer+boat+gear) [est 6000 lbs.]

• FE Galvanized Steel Tandem Trailer with hydraulic surge brakes and Spindle-Lube hubs

• Single owner since initial purchase from Corsair factory

• Only freshwater sailed on Lake Michigan May to October [1999-2020]

• Offseason/winter indoor boat and trailer storage October to May [1999-2020]

• Summer indoor trailer storage while the boat is sailed May to October

This boat has never been beached or grounded

Hull and construction

• Glossy white gelcoat

• Vinyl and isophthalic resin using PVC Divinycell foam core sandwich and high-density inserts, vacuum bagged bi-axial double bias and unidirectional fiberglass with carbon and kevlar reinforcements.

• Farrier folding system constructed of high tensile solid aluminum struts, Nitronic 50 high tensile stainless steel pins, and glass filled acetal bearings

• Non-skid decking

Hull and deck hardware

• Stainless steel pulpit

• Stainless steel stern rails [pushpits] port and starboard

• Mainsheet traveler system [high tensile aluminum]

• Harken windward sheeting traveler car

• 6:1 Enhanced purchased system

• End cap turning blocks for multiple fairlead directions

• Harken tri-roller jib cars, track and manual adjustable stoppers

• Deck mast step with stainless steel ball bearing for rotating mast with two double sheave lead blocks

• 5 Spinlock Powerclutches deck clutches [main halyard, jib halyard, spinnaker/screecher halyard, spinnaker downhaul, reef clew out haul]

• 2 deck clam cleats

• Daggerboard up-haul

• Larger sized daggerboard downhaul clam cleat

• 3 mooring cleats [bow, aft port and starboard]

• Stem head fitting with added kevlar reinforcement and integrated bow roller

• Water filler fitting with tank vent

• Holding tank pump out fitting and vent

• Transom hung rudder and cassette with control lines

• Custom enhanced rudder bearings, pintle and gudgeon system to eliminate rudder slop

• Internal cassette UHMW bearing inserts

• Rudder is fair with a VC performance epoxy coating

• Magnetic compass

• Outboard motor bracket

• Beam bolt main hull backing reinforcements use plates instead of factory standard washers

• Lifting eyes [4]

• Unobstructed anchor well that fits an oversized Fortress FX-16 anchor with mud palms

• Barber hauler system port and starboard [cam cleat, snatch block, twing block]

• Custom polyester beam straps with port and starboard turning blocks

• Rudder to engine coupling articulation arm enhances low-speed maneuverability while under power

• Wood tiller

• Tiller extension adjustable 4 to 8 feet

• Beam pads custom replacements engineered with Garolite (G-10/FR4) to precision tolerances

• Bottom Coatings

  • Interlux 2000E two-part epoxy osmotic barrier coating

  • VC-17m antifouling bottom paint applied annually

• Companionway doors (2) in grey tinted polycarbonate.  Each section has stainless steel louver ventilation inserts

• Anchor well hatch

• 5 Bomar hatches [front berth, floats, galley, head]

• Winches and sheet controllers

  • 2 Jib sheet two-speed self-tailing winches [Harken B40.2STA]

  • 1 Halyard two-speed self-tailing winch [Harken B32.2STA]

  • 2 Sprit sails two-speed winches [Harken B40.2A]

• Main cabin 3/16” gray-tinted polycarbonate window

• Sunrise amas nets - [new May 2019]

Accommodations and interior

• Main cabin 6’3’ headroom

• Factory-installed interior moldings and components constructed of foam core and fiberglass with a glossy white finish

• Molded Gelcoat non-skid floor

• Galley [factory installed]

• Countertop with cutting board

• Microwave oven [original two-burner alcohol stove included and easily reinstalled]

• Stainless steel galley sink with hand pump faucet

• Wood window trimmings with privacy nylon cloth curtains

• Cushioned seatbacks with Sunbrella covering [Silver Linen]

• Head Compartment [factory installed]

• Enclosed head [currently using a lightweight Sunbrella curtain, original wood door included and easily reinstalled]

• Vanity mirror

• Molded-in vanity sink with hand pump faucet

• Shower sump and pump

• The pump was re-engineered with a y-valve and extra-long flexible tubing to be used as a general interior bilge pump as need for emergency

• Forward cabin with double berth [6’6” x 4’7”], high-density foam mattress with Sunbrella covering [Silver Linen]

• Saloon Berths

• Two single berths with slide-out panel to convert to a large double berth using high-density foam with Sunbrella covering [Silver Linen]

• Upholstery and trim

• Frontrunner interior liner

• Table: Multi-positioning teak dinette table also mountable in the cockpit

• Cockpit vinyl-coated cushions [4] from C-Cushions

• Saloon under-berth split level storage shelf with two large side access vented hatches

• Numerous louver ventilation ports for storage area air circulation

• Refrigeration: 12 volt Coleman POWERCHILL 40 QUART THERMOELECTRIC COOLER with Heavy duty high capacity 110 volt ac to 12 volt dc power supply

  Electrical

• Two 12 volts AGM batteries (Group 24 – 79 AH and group 31 – 105 AH) [new May 2020]

• ProMariner Pro Sport dual battery charger

• Master battery switch/combiner

• Switch panel with breakers, test switch, and cigarette type outlet

• Running lights

• Combination red / green mounted on bow pulpit

• White stern LED

• LED deck light

• LED steaming light

• Numerous and additional lighting interior fixtures [incandescent, and fluorescent]

• One red/white combination fixture for night vision

• Waterproof deck plug for mast wiring

• 15 Amp dual pole AC main circuit breaker for shore power

• 2 GFI AC outlets

• Battery #1 repositioned for better weight distribution

• Coaxial TV cable for dockside hookup

  Instrumentation, electronics, and entertainment systems

• Masthead Windex

• Raymarine Autohelm 2000ST

• Timed electrical disconnect circuit

• Garmin 76Cx GPS chart plotter with cockpit mount

• Standard Horizon Explorer GPS DSC VHF radio gx1700

• 6dB 8 foot Shakespeare Galaxy antenna on a 4 foot extension pole utilizing a quick no tool mount and dismount system off the aft pushpit

• Ram 3 remote position microphone and control handset for the gx1700

• Standard Horizon HX890 Floating 6 Watt Class H DSC Handheld VHF/GPS

• Kenwood CD / Receiver [USB and 3.5 Audio Jack inputs]

• Four waterproof magnetically shielded speakers; Two inside and Two in the cockpit.  Cockpit speakers have an inline shut off switch

• Midland NOAA Weather Monitor Alert WR-100 radio

• Tactick digital compass [solar powered]

• Speed Tech electro-magnetic speed log and sensor [no through-hull penetration]

• NO THROUGH HULL TRANSDUCER PENETRATION. Transducer is mounted internally over an epoxy plug

  Spars and rigging

• Aerofoil-shaped 42.5 ft CARBON FIBER rotating mast, painted white [Southern Spars / Omohundro] , reinforcing carbon check plates at each mainsail headboard slide reef point

• Articulating 7 foot aluminum bowsprit with 4:1 bobstay vang system [original stainless steel bobstay available]

• Enhanced / re-engineered mast rotation control bar

• 6:1 boom mounted vang controller for rotator bar [rotation limiting system]

• 7:1 boom mounted vang controller for mainsail Cunningham

• Aluminum boom with internal 8:1 outhaul

• Stainless steel standing rigging with custom stainless steel hi-field levers

• 8:1 Harken mainsheet

• Anti-torque boom strap assembly attaching to the mainsheet

• Carbon fiber spreaders have their ends reinforced with carbon fiber epoxy circumferential tapes

• Mast base has been re-engineered with larger highly polished halyard pass-through slots

• Common three point anterior attachment point for cap shrouds and forestay

• Technora and Kevlar cored double braided halyards

• Kevlar double braid jib sheets

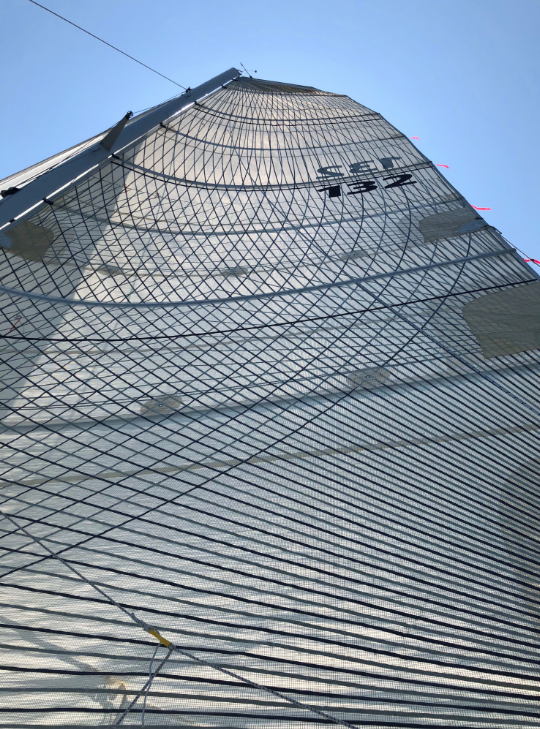

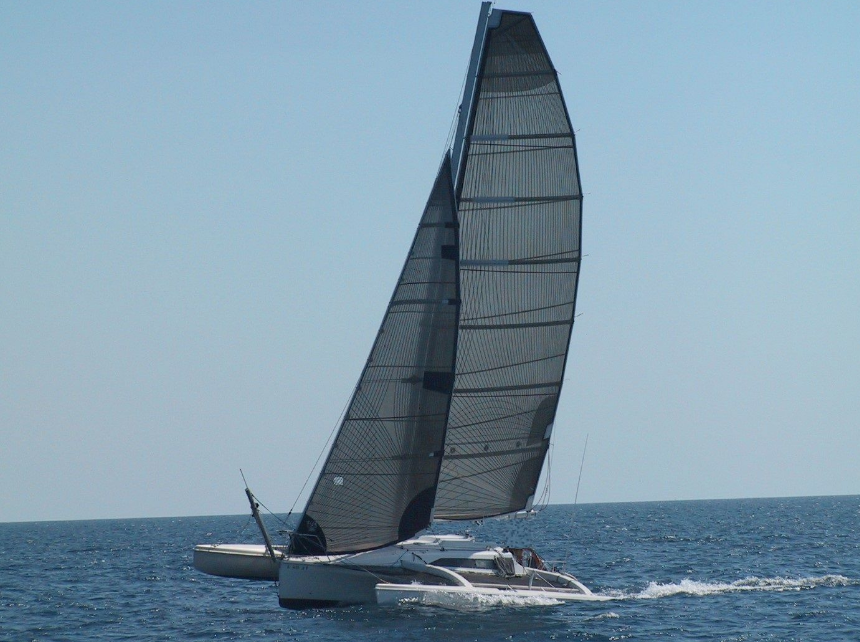

  Sails and sail controls

• Mainsail #1 original 1999 UK, Square top, full battens, 2 reefs, mylar Diax 120P kevlar tape drive, Technora T2ML 1.5, two reefs, A117 slides

• Mainsail #2 UK, Square top, Diamond Carbon Tape Drive, Gunmetal Kevlar with RBS CNC tapered E-type full battens, one reef, A118 slides

• Mainsail #3 [2011] UK, Square top, Internal Taffeta Carbon Tape Drive iT Carbon, RBS CNC tapered E-type full battens, two reefs, A118 slides

• Jib #1 hank-on original 1999 UK, mylar Diax 120P kevlar tape drive, Technora T2ML 1.5

• Jib #2 hank-on 2008 UK, Diamond Carbon Tape Drive, two full tapered battens, two partial battens, A2ML Gunmetal Kevlar with carbon tapes

• Jib #3 hank-on [2008] Calvert Load Path Extreme Spectra Maxi-hoist [Dimension Polyant X366] with 1 side taffeta, Carbon and Kevlar tapes utilizing a longer luff. Four full length battens

• Heavy air Jib hank-on [2005] UK, Carbon Tape Drive with both sides laminated over tapes with Spectra taffeta, no battens

• Asymmetrical Spinnaker [2000] UK .75 oz. AP Matrix with Chutescoop Sock / Snuffer

• Screecher [2013] [current] Mack Sails, Tri-Radial PX 10 T, internal taffeta; Inside or outside cap-shroud sheeting

• Code Zero [Deep cut] [2004] Calvert, Tri-radial, Dimension-Polyant CZ 30 Optic; Outside cap-shroud sheeting

• Harken 3100 Code Zero 00 furling system

• Ball bearing snap shackles on jib halyard, spinnaker halyard [in addition to the high thrust furl head bearing], and sprit sail sheets

• Spinnaker, Code-0, and Screecher all hoist on the spinnaker halyard

• Sunbrella Spinnaker launching bag

• Sail covers and bags for all sails

• Main #1 cover for mainsail slide retained in mast track, gray Sunbrella

• Main #2 cover for main sail draped over boom [removed from mast] gray


  Tankage and plumbing

• Vanity sink with hand pump and above waterline thru hull drain

• Galley sink with hand pump and above waterline thru hull drain

• Marine toilet [Wilcox Crittenden] with flushing water intake and discharge through-hull fittings with Y-valve diverter to holding tank

• Inline canister on toilet intake hose for deodorizing tablets

• Fresh water tank 18 gallon capacity [thoroughly cleaned and disinfected annually]

• Holding tank 16 gallon capacity [thoroughly cleaned and disinfected annually]

• Head compartment sump and pump for shower drain

• Y-valve placed into intake side with a very long hose as a backup bilge system


  Motor

• Four Stroke 9.9hp Mercury high thrust Big Foot Sail Power EXLH engine model 1-F10361VD with high thrust three blade prop, 75% throttle generally develops 5.6 knots, 100% throttle reaches hull speed of 7.5 knots, burn rate WOT approximately 1 gallon/hour, burn rate at 75% throttle approximately ¾ gallon/hour

• Electric start and battery charging

• Six gallon plastic fuel tank with oversized inline filter

• 6:1 tilt lifting vang

Trailer

• 1999 FE Tandem Axle Trailer

• Spindle Lube hubs

• These are NOT Bearing Buddy type lubricators. This system incorporates a hub grease packing system built into the spindle. It allows you to pump the old grease out of the hub every time you pump new grease in. This is all done without having to remove the wheel. This system utilizes a grease zert at the outer end of the hub with an input path that delivers fresh grease BEHIND the bearings and expresses the old grease towards the outside.

• The trailer is stored indoors

• Freshwater brake flushing system

• Spare tire

• Hydraulic surge brakes

• 2005 new master cylinder, new brake lines, 4 new wheel cylinders

• Drift column post for positioning boat during launch and retrieval

• Wooden walking planks mounted on the trailer frame

• DOT lights and reflectors

Safety equipment, tools and other equipment

• All necessary mast raising equipment including but not limited to

• Mast raising gin pole yoke and mast base attachment assembly

• Stern mast support

• Speed wrench handle with socket for beam bolts

• Multiple custom made mesh sheet and cockpit organizer bags

• Stamoid heavy duty vinyl tube travel bags for boom and mast raising gin-pole assembly

• Portable tube type bilge pump

• Radar reflector [passive]

• Winch handles

• Oversized Fortress FX-16 anchor [high-tensile, corrosion-resistant, aluminum magnesium alloy] with mud palms and appropriate rode

• MOB Life Sling

• USCG distress signaling and fire suppression equipment

• Dock lines and fenders

Many miscellaneous spare parts and components
