General Description:

Construction

All three hulls in white Gelocat finish. Deck and structural parts of the interior are hand-laid fiberglass and Biaxial fibers combined with Divinycell closed Cell foam core sandwich construction. Nonskid is part of the deck molding. The 4 wings and the 2 structural Composite bulkheads are made in unidirectional and Biaxial fibers in tempered Vinylester resin. Collision bulkhead in all three hulls.

Center composite rudder and centerboard with automatic kick-up system, controlled from the cockpit. Tiller steering with tiller extension. Epoxy primer and antifouling on all three hulls and centerboard. 2 x float hatches, incl. extra finish and topcoat inside each float.

Below deck

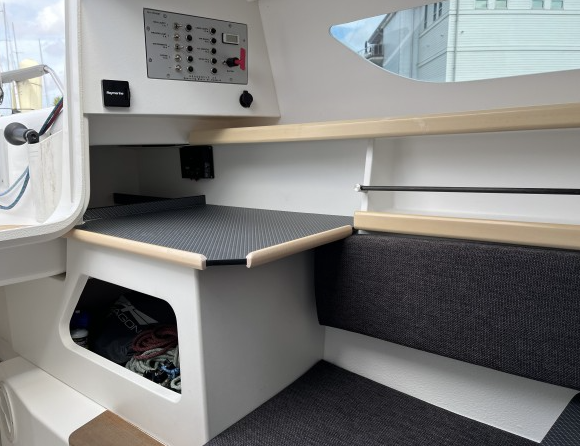

Interior composite moldings, including the headliner in main cabin, and, wooden panels at the sofa backrest. Two acrylic windows (smoke color) in the center cabin. A table in main cabin/cockpit which also folds down for sleeping in center cabin.

Cockpit and deck

Manually operated bilge pump in cockpit. Two trampoline nettings in grey UV-resistance material. Safety ladder. Large storage room with a hatch in the cockpit. 2 x 16 Andersen two speed winches + one winch handle. Ronstan mainsheet traveler and self-tacking jib track system. 2 x triple deck organizers + one Quadruple halyard stopper + one Triple halyard stopper. Mainsheet 1:12 block system. 4 x stainless mooring cleats, one stainless center bow eye for trailering and bowsprit. Windex flagpole and 4 mooring lines.

Mast, rig, and sails

10.5 m (34.5 ft) rotating aluminum mast incl. spanner and outhaul to control mast position. One spreader. Boom with two single-line reef system. All lines lead back to cockpit. 2:1 purchase mainsail halyard in Dyneema, gennaker halyard, self-tacking jib sheet lead through the mast and back to the cockpit.

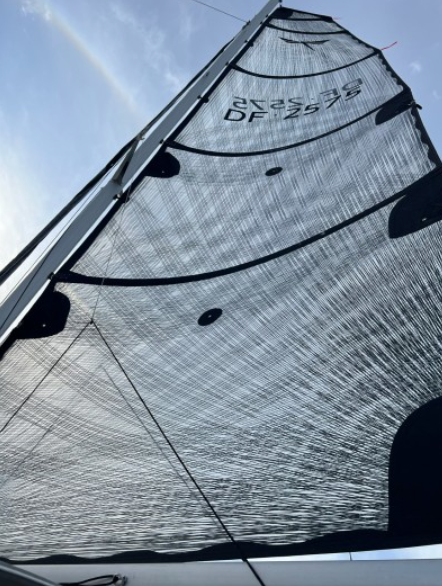

Mainsail 24 m2 in Elvström radial laminate with DCX quality, 5 battens, 2 reef points, and Lazy Jack system. Self-tacking jib 10.5 m2 in Elvström radial laminate with DCX quality, 2 battens and furling system. Side stays with an adjustable block system.

Accommodations
• V berth forward with comfortable cushions
• Overhead hatch with insect screen
• Gear hammock for storage in the front cabin
• Two settees in the main cabin, with cushions interior carpet, grey
• Galley sink with manual pump faucet
• Fresh water tank
• Portable cooking stove
• Dinning table
• Refrigerator
• Blinds for windows
• Bimini Top
• Cockpit Enclosure

Mast Sails and rigging
• Aluminum mast
• Aluminum boom
• Lazy jacks
• Self-tacking jib
• Fully battened square top mainsail
• Retractable bowsprit
• Roller furling gennaker (green and white)
• Asymmetrical spinnaker, with sheets and blocks
• Sail covers for all sails
• Bow pulpit
• Stern pushpin with protective padding
• Long tiller extension

Electrical System and Electronics
• 12V DC electrical system with battery, on/off switch and circuit breaker panel
• 12V outlet next to circuit breaker panel
• Bow and stern running lights
• Interior cabin lights
• Autopilot-Raymarine ST2000+
• Speed and depth display, Raymarine
• Compass
• 42 W solar panel

Trailer
• Trailer, factory-provided, single axle, galvanized steel, Variant
• Trailer is low profile, designed for easy launching
• Surge-activated brakes
• Parking brake and wheel chocks

Miscellaneous
• Bottom antifouling paint, Aqua
• Anchor with  rode and chain
• Boarding ladder
• Horn
• Boat hook
• Dock line
• Fenders
• PFDs
• All equipment required for raising and lowering the mast and for securing the mast for trailering
all manuals

Disclaimer
180 Marine, LLC offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
